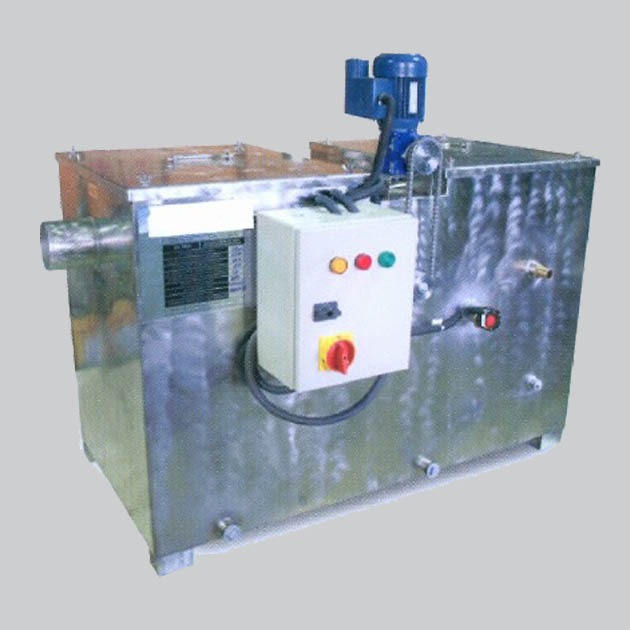

Otomatik Yağ Ayırıcılar

Otomatik Yağ Ayırıcılar

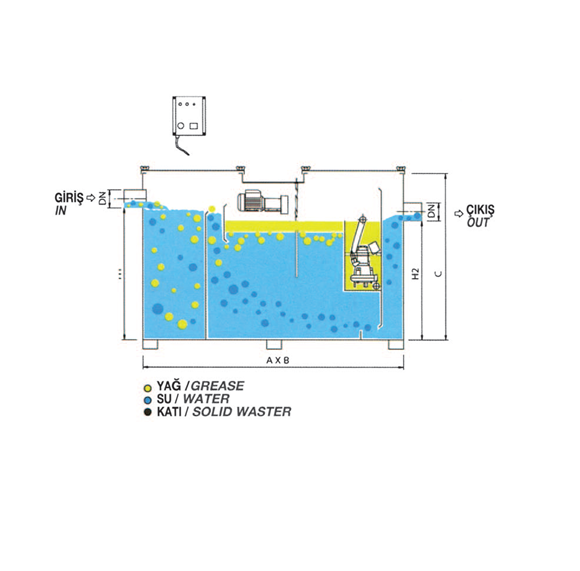

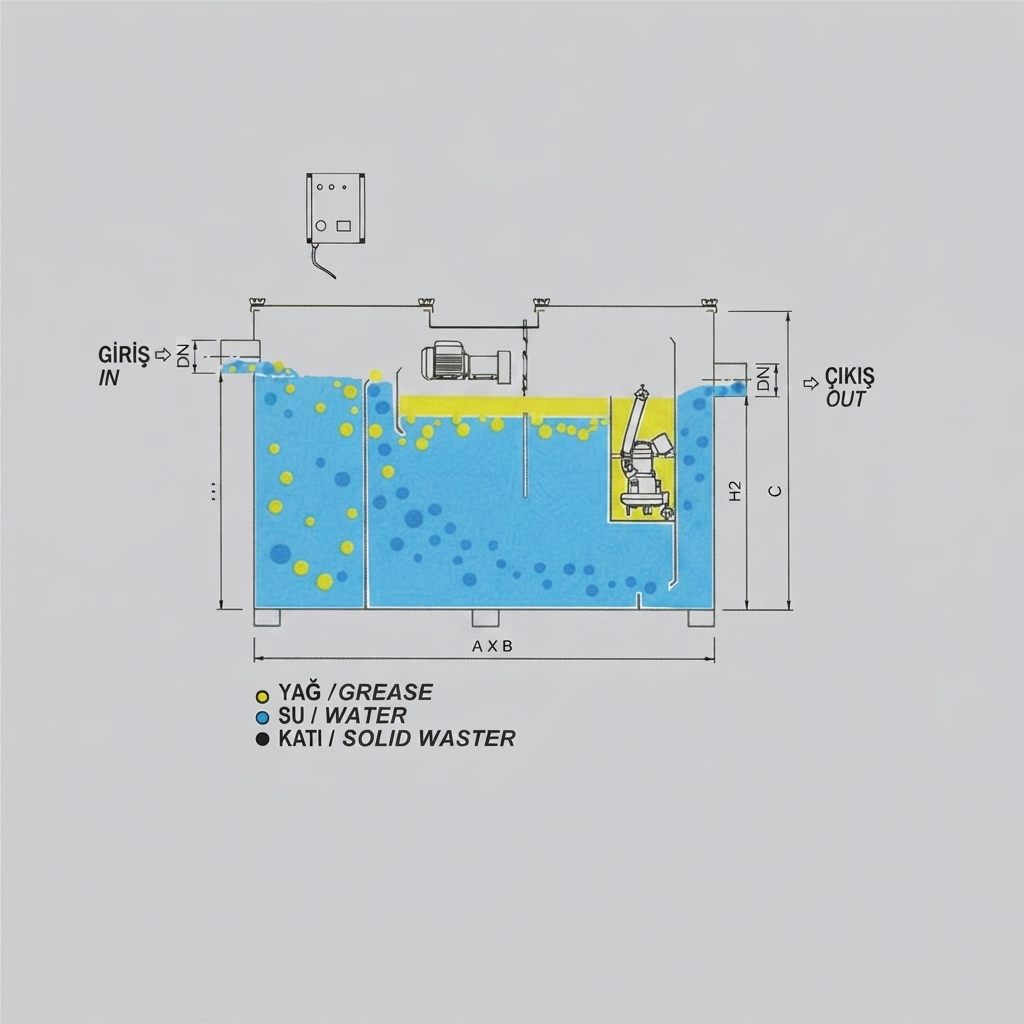

Yağ Ayırıcılar, cihazın içerisindeki yağ yüksek- liğini max. seviyeye ulaştığında uyarı cihazları monte edilebilir. Uyarı cihazlarının çalışmasıyla otomatik boşaltma sistemi üniteye ilave edilebi- lir.Karıştırıcı ve dip pompası ile yağ dolduğun- da devreye girip istenilin yere boşaltır.
Warning equipments may be installed to Oil Separators when the oil head in the equipment rises to the maximum I eve I. I Automatic discharge system may be added to the unit upon the operation of vva- ming equipments. When  the oil is  filled,   mixer and bottom pomp step  in  and discharge  it  to  the  requi- red place.





Ürün Ölçüleri (mm)

Description

Yağ Ayırıcılar, cihazın içerisindeki yağ yüksek- liğini max. seviyeye ulaştığında uyarı cihazları monte edilebilir. Uyarı cihazlarının çalışmasıyla otomatik boşaltma sistemi üniteye ilave edilebi- lir.Karıştırıcı ve dip pompası ile yağ dolduğun- da devreye girip istenilin yere boşaltır.
Warning equipments may be installed to Oil Separators when the oil head in the equipment rises to the maximum I eve I. I Automatic discharge system may be added to the unit upon the operation of vva- ming equipments. When  the oil is  filled,   mixer and bottom pomp step  in  and discharge  it  to  the  requi- red place.





Ürün Ölçüleri (mm)

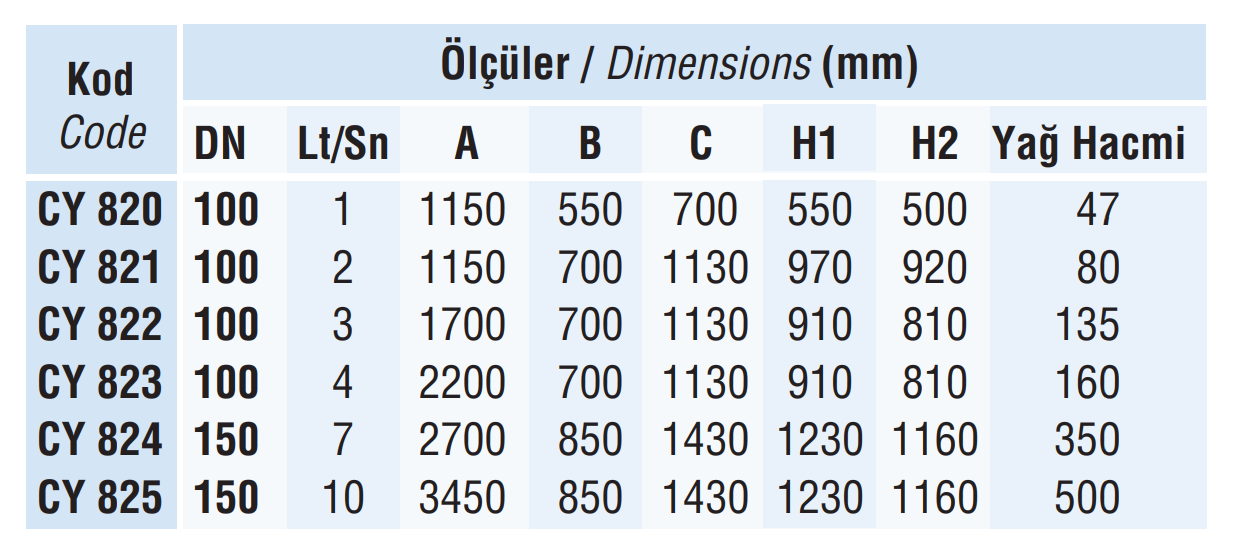

KOD DN Lt/Sn A B C H1 H2 Yağ Hacmi
CY820 100 1 1150 550 700 550 500 47
CY821 100 2 1150 700 1130 970 920 80
CY822 100 3 1700 700 1130 910 810 135
CY823 100 4 2200 700 1130 910 810 160
CY824 150 7 2700 850 1430 1230 1160 350
CY825 150 10 3450 850 1430 1230 1160 500
